Non Rotating Bottom Cementing Plug
1.Sizes ranging from 4-1/2" to 20"
2.PDC Drillable Plugs
3.Aluminum/Phenolic core inside
4.Up to 200 degree Fahrenheit or more
5.Decrease drill out time
>>Non Rotating bottom cementing plugs have been designed to decrease drill out time.
>>Non-Rotating cementing plugs have reinforced locking teeth built into the plugs.
>>The cementing plugs lock together between the top plug and the bottom plug to eliminate rotation of the plug during drill out.
>>These cementing plugs are made of Natural Rubber with aluminum alloy or Phenolic core inside.
>>Operating rage of temperature with Hydrogenated Nitrile core is up to 200 degree Fahrenheit.
>>The bottom plug in orange with rupture diaphragm at 300 psi differential.
>>These cementing plugs are completely PDC drillable.
>>API cementing plug can be ordered for higher operating temperature and operation in either synthetic or mud fluids.
>>Available in 4-1/2" to 20" and other special sizes.
>>Any special sizes are available on request.
Non Rotating Cementing Plug Product Show
.jpeg)
Non Rotating Cementing Plug Specification
|
Casing Size |
Casing Specification |
O.D of Rubber Cup |
||
|
in. |
kg/m |
lb/ft |
mm |
in. |
|
4-1/2 |
14.14-17.26 |
9.50-11.60 |
110 |
4.331 |
|
5 |
17.11-35.86 |
11.50-24.10 |
122 |
4.803 |
|
5-1/2 |
20.83-39.88 |
14.00-26.80 |
135 |
5.315 |
|
7 |
25.30-56.55 |
17.00-38.00 |
170 |
6.693 |
|
7-5/8 |
35.72-63.69 |
24.00-42.80 |
185 |
7.283 |
|
9-5/8 |
53.57-79.62 |
36.00-53.50 |
235 |
9.252 |
|
10-3/4 |
60.27-97.77 |
40.50-65.70 |
260 |
10.236 |
|
13-3/8 |
71.43-107.15 |
48.00-72.00 |
333 |
13.110 |
|
20 |
139.89-197.93 |
94.00-133.00 |
498 |
19.606 |
Non Rotating Cementing Plug Production
.jpeg)

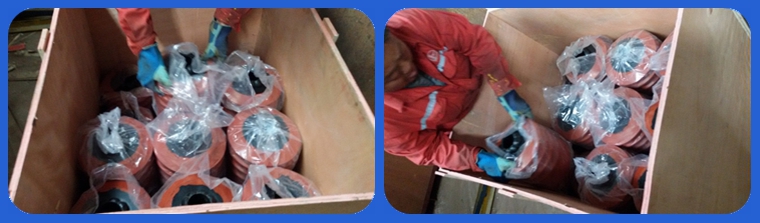

Non Rotating Cementing Plug Package
.jpeg)
.jpeg)
