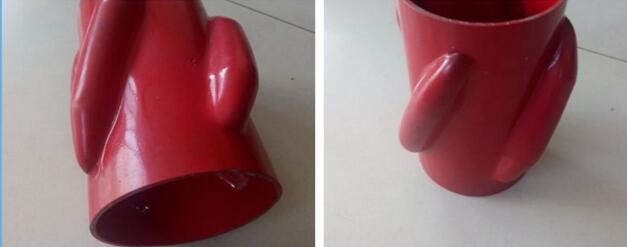

Rigid Centralizers Take Advantage Of Spiral Solid Vane Design
Take advantage of the smooth spiral 360 overlap solid vane design, rigid centralizers can provide max wall contact and fluid swirl. The slope from the body to the height of the vane will eliminate scraping, or digging into the formation. The solid cast aluminum rigid centralizers will not damage wellhead equipment, has high impact and shock resistance combine with high tensile and yield strengths.
|
Model (in) |
Hooping In-Dia. (mm) |
Hooping thickness (mm) |
Total length (mm) |
Max.Out-Di (mm) |
Amount of spring (mm) |
|
5-1/2" x 8-1/2" |
142-148 |
3-5 |
650±50 |
225±5 |
5 |
|
7" x 9-5/8" |
181-186 |
3-5 |
650±50 |
255±5 |
6 |
|
7" x 8-1/2" |
181-186 |
3-5 |
650±50 |
235±5 |
6 |
|
8-5/8 x 12-1/4" |
223-228 |
3-5 |
650±50 |
330±5 |
8 |
|
9-5/8 x 12-1/4" |
250-255 |
3-5 |
650±50 |
330±5 |
8 |
|
10-3/4 x 12-1/4" |
274-276 |
3-5 |
650±50 |
330±5 |
9 |
|
13-3/8"x17-1/2" |
342-347 |
3-5 |
650±50 |
450±5 |
11 |
|
18-5/8"x24" |
475-477 |
3-5 |
600±50 |
610±5 |
12 |
